WHAT ARE SEALING PACKAGING MACHINES AND HOW THEY WORK?
Sealing machines are essential pieces of packaging equipment designed to close and secure packaging materials by applying heat, pressure, or adhesives. These machines ensure that a product is safely and hygienically enclosed within its package, preventing contamination, leakage, or damage during transportation and storage. In the modern manufacturing environment, sealing machines are indispensable, especially in sectors where product integrity, shelf life, and visual appeal are critical to consumer satisfaction and brand reliability.
The basic working principle of a sealing machine involves aligning the packaging material—whether it's a bag, pouch, or container—and applying an appropriate sealing technique to create a strong, consistent seal. Depending on the machine type and the material used, sealing may be achieved through:
Heat Sealing: Applying heat and pressure to melt and bond thermoplastic materials.
Ultrasonic Sealing: Using high-frequency vibrations to generate localized heat that melts and fuses the packaging material.
Impulse Sealing: Heating elements are activated in pulses and cool down rapidly, suitable for thermoplastic films.
Band Sealing: Continuous sealing of bags or pouches by passing them through heated bands under pressure.
These processes are often automated to increase production efficiency, consistency, and cleanliness, particularly in food, pharmaceutical, cosmetic, and electronic packaging lines.
Key Components of a Sealing Machine
Sealing Bar or Jaw: Applies heat and pressure to the packaging material.
Temperature Controller: Maintains consistent heat levels suitable for different materials.
Cooling Mechanism: Ensures the seal solidifies quickly and securely.
Conveyor System: Moves products through the sealing process.
Control Interface: Provides operational control and customization settings.
With advancements in automation and sensor integration, many modern sealing machines offer real-time quality checks, material tracking, and connectivity for remote monitoring, aligning with Industry 4.0 standards.
WHAT ARE THE BENEFITS OF SEALING PACKAGING MACHINES?
The growing reliance on sealing machines across industries is no coincidence. They offer a wide range of benefits that significantly enhance production quality, operational efficiency, and product appeal.
1. Improved Product Protection
The primary function of a sealing machine is to ensure the packaging is airtight, leakproof, and tamper-evident. This is particularly important for perishable items, medical products, and high-value consumer goods that require secure containment to maintain shelf life and meet compliance standards.
2. Enhanced Productivity and Efficiency
Manual sealing is not only time-consuming but also prone to inconsistencies. Automated sealing machines can process hundreds or even thousands of units per hour, maintaining uniform quality while minimizing human intervention. This boost in efficiency allows businesses to scale operations without proportionally increasing labor costs.
3. Reduced Waste
Accurate and consistent sealing minimizes material wastage due to improper sealing, leaks, or contamination. In industries where packaging costs are significant, even small reductions in waste translate into substantial savings over time.
4. Improved Brand Presentation
In retail environments, the quality of a product’s packaging significantly influences consumer choice. A professionally sealed pouch or container gives the impression of quality and hygiene. Sealing machines enable precision in sealing that aligns with branding standards and packaging aesthetics.
5. Compliance with Safety Standards
Especially in the pharmaceutical and food industries, compliance with FDA, GMP, or other regulatory standards is non-negotiable. Sealing integrity is a key part of these standards. Using automated sealing machines ensures repeatable and documented sealing quality across all production batches.
6. Versatility in Applications
From vacuum sealing for fresh food preservation to blister packaging in pharmaceuticals, sealing machines cater to a wide variety of product types and packaging formats. Whether you're working with plastic films, aluminum foil, laminated paper, or multi-layer barrier films, there is a sealing solution that fits your needs.
WHAT TYPES OF SEALING PACKAGING MACHINES?
The diversity of products and packaging formats on the market has driven the development of various sealing machines, each tailored to specific applications. Below is a breakdown of the major types, all of which are highly relevant to users searching for sealing machine solutions.
1. Impulse Heat Sealers
Impulse sealers use a pulse of electricity to heat a sealing wire, which then seals the thermoplastic packaging. The heating element is only active during the sealing cycle, making this type energy-efficient and safe to use.
Applications: Small businesses, low-volume production, plastic bag sealing.
Materials Supported: PE, PP, PVC, laminated foils.
2. Continuous Band Sealers
Ideal for high-speed applications, these machines create a continuous, reliable seal as the packaging passes through a heated band. Many versions come with vertical and horizontal orientation options to accommodate different package types.
Applications: Snacks, powders, dry goods.
Materials Supported: Laminated films, aluminum foil bags, poly pouches.
3. Vacuum Sealers
These machines remove air from the packaging before sealing it, which is essential for extending shelf life and protecting products from oxidation and bacteria.
Applications: Fresh food, pharmaceuticals, electronics.
Materials Supported: Vacuum barrier bags, multilayer films.

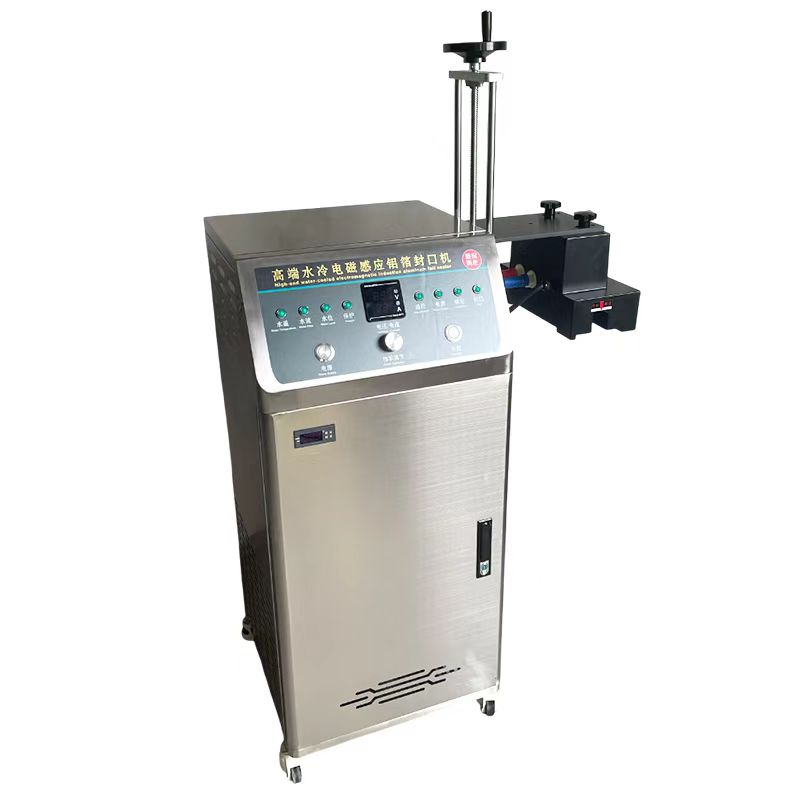

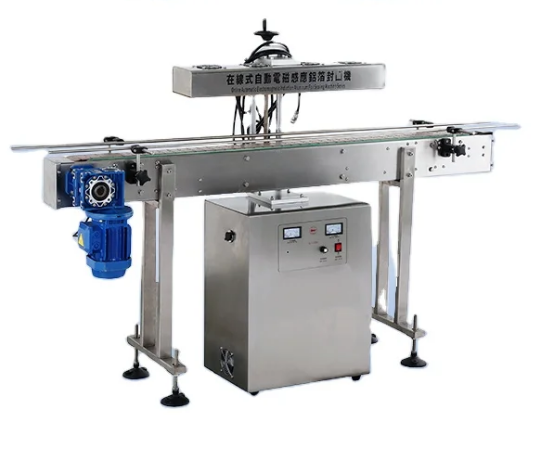

4. Induction Sealers
Induction sealing uses electromagnetic energy to heat a metallic foil inside the cap of a container. This process creates a hermetic seal on bottles and jars.
Applications: Beverages, sauces, chemicals.
Materials Supported: PET, HDPE, glass containers with foil-seal caps.
5. Blister Packaging Machines
Blister machines create cavities or pockets in pre-formed plastic materials, which are then sealed with backing paper or aluminum.
Applications: Tablets, capsules, hardware components.
Materials Supported: PVC, PVDC, thermoformed plastic sheets.
6. Tray Sealers
These machines seal food products inside trays, typically using heat and pressure. Often integrated with modified atmosphere packaging (MAP) for longer shelf life.
Applications: Ready meals, fresh produce, meat.
Materials Supported: Plastic trays, foil films, MAP films.
7. Shrink Sealing Machines
These machines use heat to shrink film tightly around the product after sealing. Ideal for tamper-evident packaging or bundling multiple products.
Applications: Retail packs, multi-packs, promotional bundles.
Materials Supported: PVC, POF, PE shrink films.
WHAT INDUSTRIES WOULD BENEFIT FROM SEALING MACHINES?
The versatility and necessity of sealing machines make them indispensable across a wide array of sectors. Each industry has unique packaging needs, and sealing machines offer customizable solutions that meet safety, quality, and branding requirements.
1. Food and Beverage Industry
This sector is the most common user of sealing machines, especially due to the strict hygiene standards and demand for freshness. From vacuum-packed meat to snack pouches, sealing ensures that food remains safe from contamination and spoilage.
Trends: Eco-friendly and recyclable packaging, smart packaging for traceability.
Relevance: High-speed production, variable packaging sizes, and compliance with health regulations make sealing machines critical.
2. Pharmaceutical and Healthcare Industry
In this highly regulated sector, package integrity is paramount. Sealing machines ensure sterile packaging and tamper-evident closures for items such as syringes, tablets, and diagnostic kits.
Trends: Anti-counterfeit packaging, RFID integration, serialized packaging.
Relevance: Blister packs, foil seals, and pouch packaging all rely on precise sealing technology.
3. Cosmetics and Personal Care
Cosmetic products often require high-quality packaging to enhance brand perception while maintaining product integrity. From sachets to tubes, sealing machines handle a variety of materials with aesthetic precision.
Trends: Sustainable packaging, on-the-go formats.
Relevance: Heat and ultrasonic sealing ensure attractive, durable packaging for creams, masks, and liquids.
4. Electronics and Industrial Products
Moisture, dust, and static sensitivity make proper sealing crucial in electronics packaging. Sealing machines help maintain the integrity of circuit boards, batteries, and sensors.
Trends: ESD-safe packaging, smart packaging sensors.
Relevance: Vacuum sealing and laminated pouches are vital for extended shelf life.
5. Agriculture and Chemical Industries
Packaging solutions for seeds, fertilizers, and chemicals require robust sealing to avoid leaks and contamination. Sealing machines must often handle large, heavy-duty pouches or containers.
Trends: Bulk packaging automation, biodegradable packaging materials.
Relevance: Strong, consistent seals reduce product loss and environmental hazards.
6. E-Commerce and Retail Packaging
With the surge in online shopping, there's a growing demand for secure, tamper-proof, and visually appealing packaging. Sealing machines provide scalable solutions that ensure packages remain intact throughout the delivery chain.
Trends: Return-friendly packaging, recyclable mailers.
Relevance: Custom seal lengths and programmable settings make these machines ideal for e-commerce.
The Evolving Role of Sealing Machines in Smart Manufacturing
In today’s competitive landscape, the integration of sealing machines into digital production ecosystems is becoming a critical factor in maintaining quality, traceability, and efficiency. Smart sealing machines are now equipped with sensors, cloud connectivity, and real-time analytics, allowing businesses to:
Monitor seal integrity automatically
Adjust parameters based on material changes
Track production data for compliance
Reduce downtime through predictive maintenance
These advancements support lean manufacturing, Industry 4.0, and sustainable production goals, directly aligning with evolving customer expectations for packaging transparency and reduced environmental impact.
Conclusion
As industries continue to face rising consumer expectations, strict regulations, and the push toward automation, sealing machines are no longer just a tool—they're a strategic asset. From ensuring product safety to enhancing shelf appeal, these machines serve as a backbone of modern packaging operations.
With their diverse applications, flexible formats, and integration potential, the sealing machine stands out as a core component of any forward-thinking manufacturing line. Businesses that invest in the right sealing technology will benefit from higher efficiency, reduced waste, and improved brand reliability—key factors for long-term success in today's dynamic marketplace.
