Looking for a reliable way to seal containers with tamper-proof, airtight protection? An Induction Sealer Machine is the answer. Whether you're packaging food, beverages, pharmaceuticals, or chemicals, induction sealing provides a professional finish and extended shelf life for your products.
In this guide, we’ll explore the types of induction sealing machines for sale, how they work, what to consider before buying, and how they can benefit your business.
Principle: When electromagnetic waves come into contact with metal materials, an eddy current magnetic field is generated, causing the metal materials to heat up instantly to achieve the purpose of converting magnetic heat into practical use. Based on the above principle, the aluminum foil gasket electromagnetic induction sealing machine performs induction sealing on bottle containers with aluminum foil gaskets (special sealing consumables with metal aluminum attached) in the bottle caps. When the bottle container passes through the magnetic induction area of the sealing machine, the aluminum foil gasket in the cap will be inductively identified, and the metal aluminum attached to the gasket will instantly become hot, melting the adhesive layer on the gasket to the bottle mouth and combining them into one, achieving the purpose of beautiful and firm product sealing.
At Tengzhuo Packing Machinery, we offer a range of induction sealing machines to meet different production needs:
Handheld Induction Sealers – Portable and ideal for small-scale operations or laboratory use.
Semi-Automatic Induction Sealers – Suitable for medium-speed production lines, with user-friendly controls.

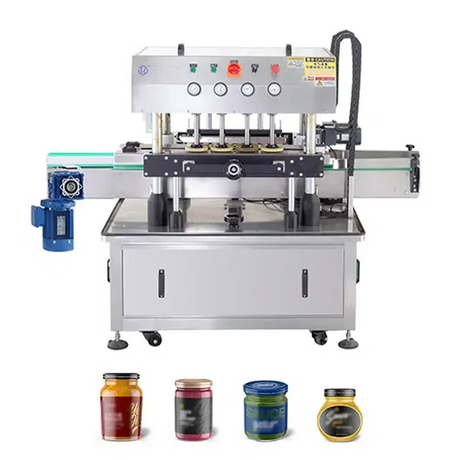

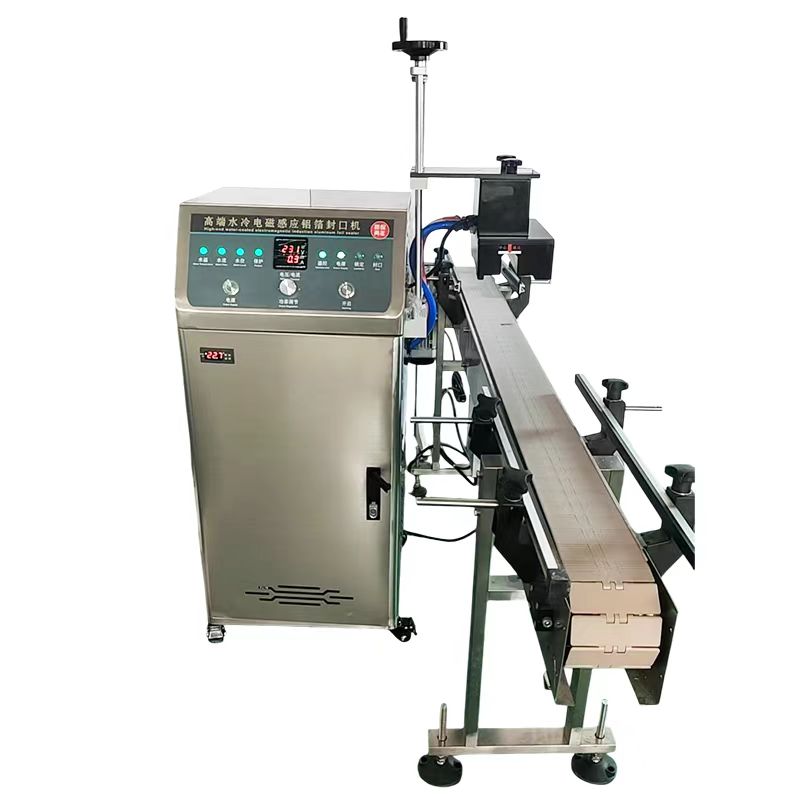

Fully Automatic Induction Sealing Machines – Integrated with conveyors for high-speed, continuous sealing on industrial production lines.
Large Barrel Foil Sealers – Designed for sealing large container mouths, typically from 5L to 30L.
All machines are compatible with plastic (PE, PET, PP, HDPE) and glass containers and can be customized based on foil size and sealing requirements.
The characteristics of electromagnetic aluminum foil induction sealing machine mainly include the following aspects:
Efficient and fast sealing: The electromagnetic aluminum foil induction sealing machine uses the principle of electromagnetic induction to heat up the aluminum foil gasket and melt the adhesive layer in a very short time, thereby achieving fast and efficient sealing operation
Beautiful and firm sealing effect: Through induction heating, the aluminum foil gasket can be evenly melted and fit tightly with the bottle mouth to form a beautiful and firm seal, which can effectively prevent the leakage of contents
Wide range of application: The equipment is widely used in the pharmaceutical, food, chemical and other industries, and is suitable for the sealing needs of various bottled containers
Easy operation: The electromagnetic aluminum foil induction sealing machine is exquisitely designed and easy to operate. It is suitable for power adjustment according to the properties of different filling materials and can meet the needs of laboratory and small batch production
Technical parameters: Taking the manual electromagnetic induction aluminum foil sealer as an example, its working voltage is 220V, the frequency is 50/60Hz, the maximum output power is 600W, the sealing diameter range is 20-60mm, which is suitable for small bottle mouths.
Working Principle of Induction Sealing Machine: Step-by-Step Explanation
An electromagnetic induction aluminum foil sealing machine creates a hermetic, tamper-evident seal on containers by using non-contact heat generation. This process involves a combination of electromagnetic theory, precise heating, and pressure sealing.
High-Frequency Electromagnetic Field Generation
At the core of the induction sealing machine is a powerful high-frequency generator (usually operating between 20 kHz to 500 kHz). This generator drives an induction coil, which is positioned in the machine's sealing head.
When activated:
The electronic circuitry produces a high-frequency alternating current (AC).
This current flows through the induction coil, producing a rapidly alternating electromagnetic field in the space beneath the coil.
This field penetrates through the non-metallic bottle cap and interacts with the aluminum foil liner inside the cap.
Eddy Current Heating of Aluminum Foil
The alternating electromagnetic field induces eddy currents (localized electrical currents) within the aluminum foil layer. Due to the electrical resistance of the foil:
These eddy currents cause Joule heating (also called resistive heating).
The foil heats up very rapidly—within milliseconds—without any direct contact.
As a result:
The heat-sealing layer (usually wax or polymer) on the underside of the foil softens or melts.
This layer is typically chosen based on the container material (e.g., PE, PP, PET, HDPE, or glass).
Sealing Formation (Bonding and Cooling)
Once the heat-sealing layer reaches its melting point:
The liner softens and bonds tightly to the rim of the container.
Some machines apply mechanical pressure to help the molten layer adhere firmly to the bottle opening.
The bottle then moves away from the coil and cooling begins, solidifying the seal.
After cooling:

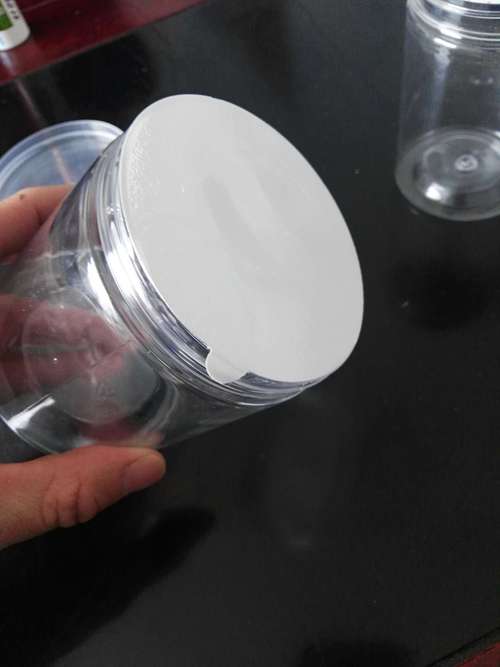

The aluminum foil remains tightly sealed to the bottle mouth.
The cap may include a secondary liner that remains inside the cap (commonly in two-piece liners).
This results in:
Airtight, leak-proof protection
Tamper-evident sealing
Preservation of freshness and product quality
Application Scenarios
The induction sealing process is versatile and used in many industries:
Pharmaceutical Sealing of pill bottles, syrups, and powders to meet hygiene and safety standards
Food & Beverage Bottled sauces, juices, dairy products, and oils to ensure leak protection and shelf stability
Cosmetics & Personal Care Creams, lotions, shampoos in PET or HDPE containers
Chemical & Agrochemical Sealing of industrial cleaners, pesticides, and motor oil to prevent leaks and spills
Health Supplements Protein powders, vitamins, and capsules for tamper-proof packaging
Industry | Application |
Pharmaceutical | Sealing of pill bottles, syrups, and powders to meet hygiene and safety standards |
Food & Beverage | Bottled sauces, juices, dairy products, and oils to ensure leak protection and shelf stability |
Cosmetics & Personal Care | Creams, lotions, shampoos in PET or HDPE containers |
Chemical & Agrochemical | Sealing of industrial cleaners, pesticides, and motor oil to prevent leaks and spills |
Health Supplements | Protein powders, vitamins, and capsules for tamper-proof packaging |
Before purchasing an induction sealing machine, consider the following:
Performance stability: The performance stability of the sealing machine is the key. The equipment should be able to work stably during use to avoid intermittent sealing or loose sealing. The quality of the equipment can be evaluated by examining its sealing performance
Construction and solder joint flatness: The construction and solder joint flatness of the sealing machine are also important criteria for judging quality. Reasonable construction and uniform and flat solder joints can ensure the durability and efficient operation of the equipment
Sealing performance: Through sealing performance tests such as pressure tests and vacuum tests, the sealing performance of the seal can be verified to ensure that the product is not affected by the outside world during the shelf life
Appearance and flatness: The beauty and flatness of the seal directly affect the overall image of the product and consumer acceptance. Check whether the sealing edge is smooth, wrinkle-free, undamaged, and tightly fitted with the bottle body or packaging material
Material adaptability: Different materials react differently to electromagnetic induction, so it is necessary to evaluate the adaptability of the sealing machine to different materials (such as PET, PE, glass bottles, etc.) to ensure that it can effectively bond various materials
Production efficiency and stability: High production efficiency and stability are essential for large-scale production. Evaluate the continuous operation capacity, failure rate and maintenance cost of the sealing machine to ensure that it can maintain stable performance in a high-intensity production environment
Price and budget: Choose the appropriate type of equipment (manual, automatic or fully automatic) according to your needs, and consider the price difference of the equipment. If a simple manual type is required, there is no need to spend extra money
Brand and after-sales service: Choose a brand with a good reputation and understand its after-sales service quality to ensure timely technical support and maintenance during use
Tengzhuo offers full consultation and customization to ensure the perfect fit for your production line.
Electromagnetic induction sealing machines bring significant benefits to your business through many advantages such as improved efficiency, guaranteed quality, environmental protection and energy saving, and easy operation.
First of all, high efficiency and batch operation capability are one of the important advantages of electromagnetic induction sealing machines. It can complete the sealing task quickly, which is particularly suitable for batch operation in mechanical automation production, greatly improving production efficiency
1. This high efficiency not only saves time, but also reduces labor costs, which is particularly suitable for large-scale production environments.
Secondly, stable and reliable quality is another major feature of electromagnetic induction sealing machines. It uses electromagnetic induction to seal, which reduces product leakage and seepage, ensures the sealing and integrity of the product, thereby improving product quality and customer satisfaction
This is especially important for products that require high-quality packaging, which can enhance brand image and market competitiveness.
In addition, Environmental protection and energy saving is also a significant advantage of electromagnetic induction sealing machines. It does not require the use of a large amount of compressed air, avoids environmental pollution and energy waste, and conforms to the sustainable development concept of modern enterprises
Today, with the increasing awareness of environmental protection, this feature has a positive impact on corporate image and long-term development.
Easy operation makes the electromagnetic induction sealing machine easy to use and maintain. Users only need to place the container on the machine and press a button to complete the sealing, without the need for professional technicians to operate
This not only reduces the difficulty of operation, but also reduces training costs and time, and improves work efficiency.
Finally, Low maintenance cost and long service life. The electromagnetic induction sealing machine has a low maintenance cost, a long service life, and is also very convenient for maintenance
This means lower operating costs and higher equipment utilization for companies that require long-term stable operation.
People Also Ask
Q: What containers can be sealed with an induction sealer?
A: PET, PE, PP, HDPE, and glass containers with foil-lined caps.
Q: Does induction sealing work without a cap?
A: No. The foil liner must be held in place by a cap for proper sealing.
Q: Can it seal liquids?
A: Yes! Induction sealing is ideal for sealing bottles of liquids such as oils, sauces, and chemicals.
Q: How long does the sealing take?
A: Sealing time ranges from 0.1 to 1.5 seconds, depending on foil type and machine power.
Q: What is an Induction Sealer Machine?
A: An induction sealer machine is a non-contact packaging device that uses electromagnetic induction to heat an aluminum foil liner inside a bottle cap.
Q: What Are Induction Sealer Machines Used For?
A: Induction sealing machines are widely used to:
Seal plastic and glass bottles or jars
Prevent product leakage or spoilage
Extend shelf life by blocking air and moisture
Provide tamper-evidence for consumer safety
Ensure product freshness and hygiene during storage and transportation
Q: What Kind of Aluminum Foil Meets the Standard?
A:To ensure proper sealing, the aluminum foil must include a multi-layer structure, typically:
Aluminum layer (for electromagnetic heating)
PET or paper backing (for insulation)
Heat-sealing layer (adapted to the container material like PE, PET, or PP)
Look for foil liners that are:
Compatible with your container material
Induction seal-ready (with heat-activated adhesives)
Pre-cut or roll-fed, based on your machine design
For best performance, use high-quality foil liners from reliable suppliers who offer compatibility testing.
Q: Where to Buy Induction Sealer Machines?
A: You can purchase high-quality induction sealing machines directly from Tengzhuo Packing Machinery – a trusted manufacturer with over 10 years of experience in automated packaging solutions.
We offer:
Handheld, semi-automatic, and fully automatic models
Customizable solutions for various bottle sizes and industries
CE-certified machines with full technical support
Visit: https://www.wechumachine.com/
Email: sales@tengzhuopack.com
We provide global shipping and after-sales support to help you get the most out of your sealing system.
An Induction Sealing Machine is a smart investment for businesses that prioritize product integrity, shelf life, and consumer trust. From small workshops to large factories, Tengzhuo Packing Machinery offers induction sealers tailored to your needs—with reliable performance, CE-certified quality, and expert support.
